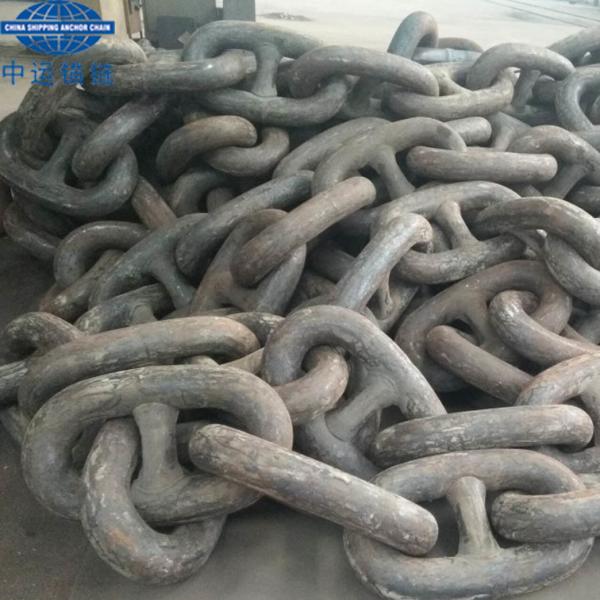

Zhoushan Stock Fast Delivery Price Anchor Chain
Anchor Chain in grade 2 and grade 3 are the most used anchor chains for commercial shipping, The difference between grade 2 and grade 3 is the additional heat treatment process after manufacturing of the anchor chain that upgrades the quality
Zhoushan is a famous ship building repairing cleaing place.
We have advantage geographic position and can offer anchor chain install work.
Anchor Chain in stock fast delivery in 1~3 days to save your time for docking.
Anchor Chain Size: 50~122MM in stock with KR LR BV NK CCS ABS cert
Anchor Chain Factory Stock with competitive price. fast delivery in China Singapore and worldwide.
We can offer Install and cleaning a foul hawse service at all shipyard, Anchorage Groud in Zhoushan.
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Anchor Chain Technical Data
| Dia.(mm) | Grade 2 | Grade 3 |
| | Breaking Load (kN) | Proof Load (kN) | Breaking Load (kN) | Proof Load (kN) |
| 50 | 1370 | 981 | 1960 | 1370 |
| 52 | 1480 | 1060 | 2110 | 1480 |
| 54 | 1590 | 1140 | 2270 | 1590 |
| 56 | 1710 | 1220 | 2430 | 1710 |
| 58 | 1810 | 1290 | 2600 | 1810 |
| 60 | 1940 | 1380 | 2770 | 1940 |
| 62 | 2060 | 1470 | 2940 | 2060 |
| 64 | 2190 | 1560 | 3130 | 2190 |
| 66 | 2310 | 1660 | 3300 | 2310 |
| 68 | 2450 | 1750 | 3500 | 2450 |
| 70 | 2580 | 1840 | 3690 | 2580 |
| 73 | 2790 | 1990 | 3990 | 2790 |
| 76 | 3010 | 2150 | 4300 | 3010 |
| 78 | 3160 | 2260 | 4500 | 3160 |
| 81 | 3380 | 2410 | 4820 | 3380 |
| 84 | 3610 | 2580 | 5160 | 3610 |
| 87 | 3850 | 2750 | 5500 | 3850 |
| 90 | 4090 | 2920 | 5840 | 4090 |
| 92 | 4260 | 3040 | 6080 | 4260 |
| 95 | 4510 | 3230 | 6440 | 4510 |
| 97 | 4680 | 3340 | 6690 | 4680 |
| 100 | 4940 | 3530 | 7060 | 4940 |
| 102 | 5120 | 3660 | 7320 | 5120 |
| 105 | 5390 | 3850 | 7700 | 5390 |
| 107 | 5570 | 3980 | 7960 | 5570 |
| 111 | 5940 | 4250 | 8480 | 5940 |
| 114 | 6230 | 4440 | 8890 | 6230 |
| 117 | 6510 | 4650 | 9300 | 6510 |
| 120 | 6810 | 4850 | 9720 | 6810 |
| 122 | 7000 | 5000 | 9990 | 7000 |
